Medical airtight automatic door - Hospital air automatic door 【Back】 |
Product Description
n Use color steel door or matte stainless steel plate
n Door fitted with special rubber seals around to ensure air tightness of the door
n Open the door: sensors, remote switches, foot switches, non-contact proximity sensor switches, etc.
n Outage time manually sliding open easily
n Safety measures:
① built-in electronic devices: an obstacle when closed, the doors quickly reversed.
② exterior security lighting: Do not close the door to ensure that the car enters surgery
n Medical airtight automatic door suitable for hospital operating rooms, laboratories, sophisticated workshops, electronic or other purification plant sites
The main technical indicators
|
Specification |
Main Technical Indicators |
|
Maximum leaf weight |
150 Kg |
|
Width of door |
1020 ~ 1600 mm |
|
Net opening height |
≤ 2400mm |
|
Opening speed |
150 ~ 500 mm / s (adjustable) |
|
Closing speed |
130 ~ 450 mm / s (adjustable) |
|
Manual opening force |
≤ 100 N (off state) |
|
Stay open |
2 ~ 15 s (adjustable) |
|
Rated Power |
150W |
|
Power supply |
AC220V 50Hz |
|
Operating ambient temperature |
-20 ℃ ~ +50 ℃ |

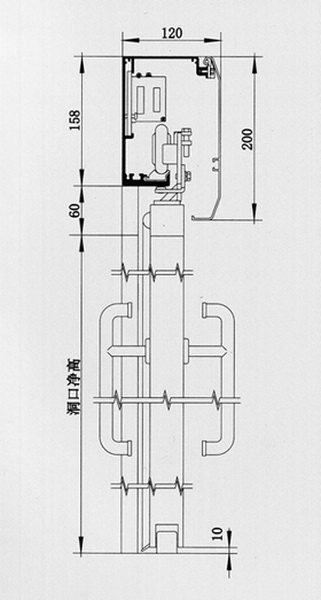

Cross-sectional view
