Peripheral devices - Automatic backup power supply 【Back】 |
Automatic doors designed specifically for emergency power back-up, very suitable for the power outage plagued automatic door applications, making the automatic doors after a power outage can work (can open and close about 200 times normal).

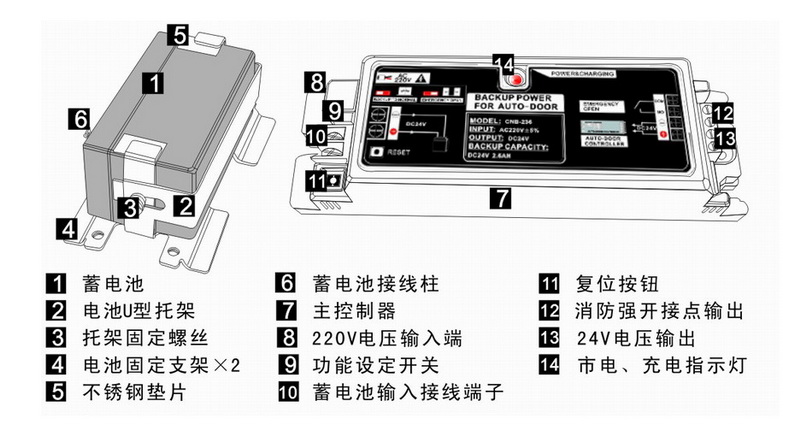

Product Overview

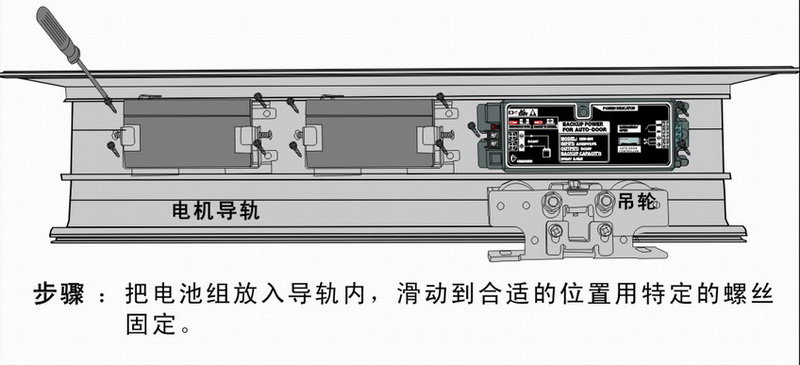

Product Installation
The main technical parameters
|
Item |
Technical parameters |
|
Input Voltage |
AC220V, 50Hz |
|
The output voltage |
DC24V, 2.6AH |
|
Operating Mode |
Power failure or power outage open work |
|
Charging time |
Approximately 6 hours |
|
Continued to work as |
Approximately 200 times opening and closing |
|
Controller Dimensions |
176 (L) × 53 (W) × 37 (H) mm |
|
Battery Size |
70 (L) × 46 (W) × 99 (height) mm (× 2 blocks) |
